AAEON TECHNOLOGY, INC.
PCM-3110
| Card Type | PCMCIA Drive Module |
| Boot ROM | Available |
| Chip Set | Unidentified |
| I/O Options | PCMCIA Type I/PCMCIA Type II/PCMCIA Type III/80-pin flat cable connector |
| Data Bus | PC/104 (16-bit) |

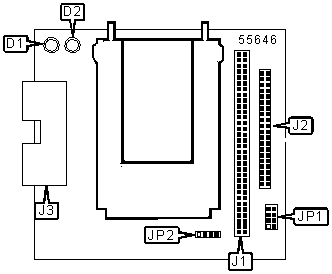

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| PC/104 connector (8-bit) | J1 | 80-pin flat cable connector | J3 |
| PC/104 connector (16-bit) | J2 | Power connector | JP2 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | Read from Boot ROM | JP1 | Pins 5 & 6 closed |
| Write to Boot ROM | JP1 | Pins 1 & 2, 5 & 6 closed | |
BOOT ROM/BIOS ADDRESS SELECTION |
||
Selection |
JP1 | |
CA000-CB000 |
Pins 3 & 4 closed | |
| » | CC000-CD000 |
Pins 5 & 6 closed |
CE000-CF000 |
Pins 7 & 8 closed | |
| Boot ROM disabled | Pins 5 & 6, 7 & 8 closed | |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
| D1 | Yellow |
On |
Unidentified (battery LED) |
| D2 | Red |
On |
Drive activity detected |
| D2 | Red |
Off |
No drive activity detected |
