Card Type

Serial card

Chip Set

Unidentified

Maximum Onboard Memory

Unidentified

I/O Options

RS-232 serial ports (2)

Hard Drives supported

None

Floppy drives supported

None

Data Bus

32-bit PCI

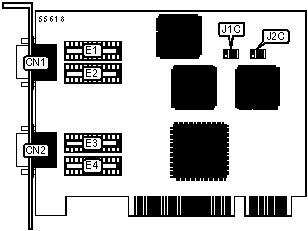

CONNECTIONS

Function

Label

Function

Label

9-pin RS-232 serial port 1

CN1

9-pin RS-232 serial port 2

CN2

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

 Factory configured - do not alter

  E1

Unidentified

»

 Factory configured - do not alter

  E2

Unidentified

»

 Factory configured - do not alter

  E3

Unidentified

»

 Factory configured - do not alter

  E4

Unidentified

PORT 1 CLOCK MODE SELECTION

DIVIDE

J1C

1

Pins 1 & 2 Closed

2

Pins 3 & 4 Closed

»

4

Pins 5 & 6 Closed

PORT 2 CLOCK MODE SELECTION

DIVIDE

J2C

1

Pins 1 & 2 Closed

2

Pins 3 & 4 Closed

»

4

Pins 5 & 6 Closed
