CREATIVE LABS, INC.
SOUNDBLASTER AWE64 VALUE (CT4501)
|
Card Type |
Sound card |
|
Chip Set |
Creative Technology |
|
Maximum Onboard Memory |
24MB with upgrade module |
|
I/O Options |
Line in, microphone in, line out, speaker out, game/MIDI port, audio in -CD-ROM , PC speaker connector |
|
Data Bus |
16-bit ISA |
|

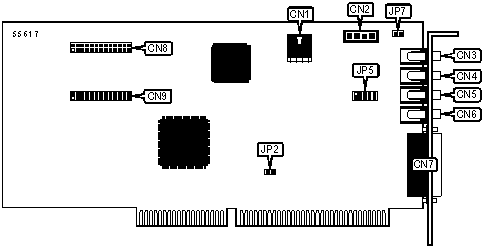

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
Audio in - CD-ROM (ATAPI) |
CN1 |
Speaker out |
CN6 |
|
CD-ROM input connector |
CN2 |
Game/MIDI port |
CN7 |
|
Line in |
CN3 |
Header to memory upgrade module |
CN8 |
|
Microphone in |
CN4 |
Header to memory upgrade module |
CN9 |
|
Line out |
CN5 |
PC speaker connector |
JP7 |
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
| » |
MP-401 enabled |
JP2 |
Closed |
|
MP-401 disabled |
JP2 |
Open |
|
| » |
Factory configured – do not alter |
JP5 |
Unidentified |
