CREATIVE LABS, INC.
SOUNDBLASTER PCI 128 (CT4700)
|
Card Type |
Sound card |
|
Chip Set |
Unidentified |
|
I/O Options |
CD-ROM audio in, front speaker out, game/MIDI port, internal TAD connector, internal TV tuner connector, line in, microphone in, rear speaker out |
|
Data Bus |
32-bit PCI |
|

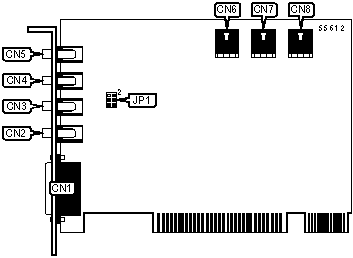

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
Game/MIDI port |
CN1 |
Line in |
CN5 |
|
Rear speaker out |
CN2 |
Internal TAD connector |
CN6 |
|
Front speaker out |
CN3 |
CD-ROM audio in |
CN7 |
|
Microphone in |
CN4 |
Internal TV tuner connector |
CN8 |
|
FRONT OUT (CN3) CONFIGURATION |
||
|
Function |
JP1 |
|
| » |
Enable front line out mode (power speakers) |
Pins 3 & 5, 4 & 6 Closed |
|
Enable speaker out mode (non powered speakers) |
Pins 1 & 3, 2 & 4 Closed |
|
