CREATIVE LABS, INC.
SOUNDBLASTER 32 PNP (CT3604), SOUNDBLASTER AWE 32 PNP (CT3601)
| Card Type | Sound card |
| Chip Set | Unidentified |
| I/O Options | Audio in (2), game/MIDI port, line in, line out, microphone in, PC speaker connector, speaker out, SPDIF (digital interface format) connector |
| Data Bus | 16-bit ISA |

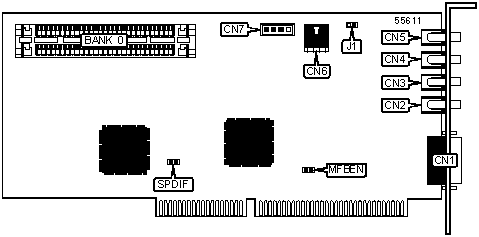

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Game/MIDI port | CN1 |
Audio in CD-ROM | CN6 |
| Speaker out | CN2 |
Audio in CD-ROM | CN7 |
| Line out | CN3 |
PC speaker connector | J1 |
| Microphone in | CN4 |
SPDIF (digital interface format) connector | SPDIF |
| Line in | CN5 |
||
USER CONFIGURABLE SETTINGS |
||
Function |
Label |
Position |
| Enable MPU-401 port | MFBEN |
Closed |
| Disable MPU-401 port | MFBEN |
Open |
SIMM CONFIGURATION |
| Bank 0 |
(2) 512KB x 32 |
MISCELLANEOUS TECHNICAL NOTE |
The AWE 32 (CT3601) comes with the additional 512k of RAM already installed |
