SUN MICROSYSTEMS COMPUTER CORPORATION
FSBE/S SBUS CARD
| Card Type | Multi I/O card |
| I/O Options | Ethernet 10BaseT connector, SCSI-2 F connector |
| Hard Drives supported | Up to 7 SCSI-2 devices |
| Data Bus | Proprietary |
CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Ethernet 10BaseT connector | CN1 | SBus slot | CN3 |
| SCSI-2 port | CN2 | ||

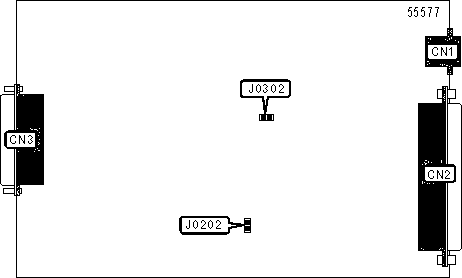

USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| Oscillator enabled | J0202 | Unidentified | |
| Oscillator disabled | J0202 | Unidentified | |
| » | Link integrity enabled | J0302 | Open |
| Link integrity disabled | J0302 | Closed | |
