DIGITAL RESEARCH TECHNOLOGIES

DRWAVE

Card Type Sound card
Chip Set ALS
I/O Options Game port, Line in, Line out, Microphone in, CD-ROM audio input (2), CD-ROM interface
Data Bus 16-bit ISA

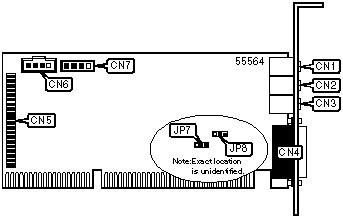

CONNECTIONS

Function

Label

Function

Label

Line in

CN1

 CD-ROM interface

CN5
Line out

CN2

 CD-ROM audio connector

CN6
Microphone in

CN3

 CD-ROM audio connector

CN7
Game port

CN4






LINE OUT SELECTION

Setting

JP7

 JP8

»

Line out

Pins 1 & 2 closed

 Pins 1 & 2 closed



Speaker out

Pins 2 & 3 closed

 Pins 2 & 3 closed
