Card Type

Sound card

Chip Set

ALS

I/O Options

Game port, Line in, Line out, Microphone in, CD-ROM audio input (2), CD-ROM interface

Data Bus

16-bit ISA

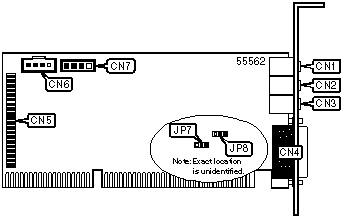

CONNECTIONS

Function

Label

Function

Label

Line in

CN1

CD-ROM interface

CN5

Line out

CN2

CD-ROM audio connector

CN6

Microphone in

CN3

CD-ROM audio connector

CN7

Game port

CN4

LINE OUT SELECTION

Setting

JP7

»

Line out

Pins 1 & 2 closed

Speaker out

Pins 2 & 3 closed
