ANTEX ELECTRONICS
SX-23E, SX-26
|
Card Type |
Sound Card |
|
Chip Set |
Unidentified |
|
I/O Options |
DB-9 connector, 1/4" headphone jack, 7-pin mini DIN, RCA audio in/out |
|
Data Bus |
16-bit ISA |
|
Card Size |
Full-length, full-height card |
|

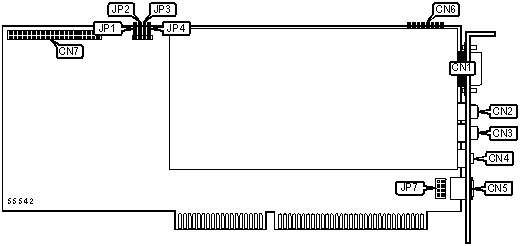

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
DB-9 connector |
CN1 |
AES/EBU, S/PDIF digital audio connector |
CN5 |
|
Line in (unbalanced) |
CN2 |
Balanced analog header |
CN6 |
|
Line out (unbalanced) |
CN3 |
SP-100 adapter connector |
CN7 |
|
Headphone jack |
CN4 |
Digital header |
JP7 |
|
ADAPTER CARD SELECTION |
||||
|
Setting |
JP1 |
JP2 |
JP3 |
JP4 |
|
Only board in system |
Closed |
Open |
Open |
Open |
|
Second board in system |
Open |
Closed |
Open |
Open |
|
Third board in system |
Open |
Open |
Closed |
Open |
|
Fourth board in system |
Open |
Open |
Open |
Closed |
