B & B ELECTRONICS
232PCI1A, 232PCI1B
|
Card Type |
Serial Card |
|
Chipset |
16550A (232PCI1A) |
|
I/O Options |
9-pin serial port |
|
Data Bus |
32-bit PCI |
|

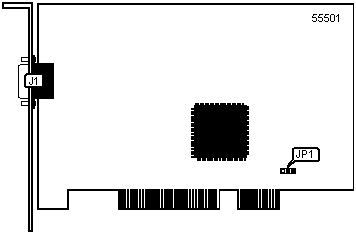

CONNECTIONS |
|
|
Function |
Label |
|
9-pin serial port |
J1 |
|
USER CONFIGURABLE SETTINGS |
|||
|
Setting |
Label |
Position |
|
|
» |
Clock speed normal |
JP1 |
Pins 2 & 3 closed |
|
|
Clock speed multiplied by 4 |
JP1 |
Pins 1 & 2 closed |
