Card Type

Sound card

Chip Set

Unidentified

Maximum Onboard Memory

Unidentified

I/O Options

Line in, line out, microphone in, game/MIDI port, audio in - CD-ROM (3), audio in - modem, PC/PCI Sideband signal

Data Bus

32-bit PCI

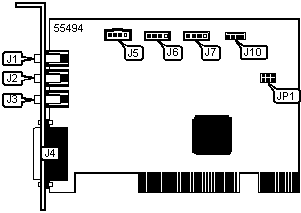

CONNECTIONS

Function

Label

Function

Label

Line in

J1

Audio in - CD-ROM (Mitsumi)

J6

Microphone in

J2

Audio in - CD-ROM (Creative)

J7

Speaker out

J3

Audio in - modem

J10

Game/MIDI port

J4

PC/PCI sideband signal

JP1

Audio in - CD-ROM (Sony)

J5
