Card Type

Sound card

Chip Set

Unidentified

Maximum Onboard Memory

Unidentified

I/O Options

Line in, speaker out, microphone in, game/MIDI port, audio in - CD-ROM telephony port, wavetable connector

Data Bus

16-bit ISA

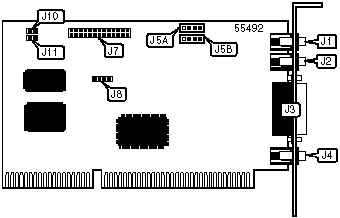

CONNECTIONS

Function

Label

Function

Label

Microphone in

J1

Audio in - CD-ROM

J5B

Line in

J2

Wavetable connector

J7

Game/MIDI port

J3

Telephony port

J8

Speaker out

J4

Volume button connector (up)

J10

Audio in - CD-ROM

J5A

Volume button connector (down)

J11
