ACER, INC.
AW300 AUDIO CARD
|
Card Type |
Sound card |
|
Chip Set |
Unidentified |
|
Maximum Onboard Memory |
Unidentified |
|
I/O Options |
Line in, line out, microphone in, game/MIDI port, audio in - CD-ROM (2), mono in - modem, mono out - modem, PC-PCI Sideband signal |
|
Data Bus |
32-bit PCI |
|

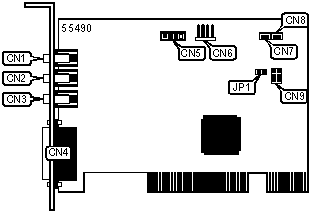

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
Line out |
CN1 |
Audio in - CD-ROM |
CN6 |
|
Line in |
CN2 |
Mono in - modem |
CN7 |
|
Microphone in |
CN3 |
Mono out - modem |
CN8 |
|
Game/MIDI port |
CN4 |
PC-PCI Sideband signal |
CN9 |
|
Audio in - CD-ROM |
CN5 |
||
|
USER CONFIGURABLE SETTINGS |
||
|
Function |
Label |
Position |
|
PC/PCI interface enabled |
JP1 |
Closed |
|
PC/PCI interface disabled |
JP1 |
Open |
