DATA TRANSLATION, INC
DT31-EZ, DT34-EZ
| Card Type | Digital I/O card |
| I/O Options | 50-pin analog port |
| Data Bus | 16-bit ISA/16-bit EISA |
| Card Size | Three-quarter length, full-height card |
CONNECTIONS |
|
Function |
Label |

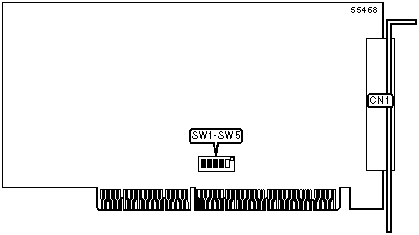

| 50-pin analog connector | CN1 |
BASE I/O ADDRESS SELECTION |
||||||
Setting |
SW1 |
SW2 |
SW3 |
SW4 |
SW5 |
|
200h |
Off |
On |
On |
On |
On |
|
220h |
Off |
On |
On |
On |
Off |
|
240h |
Off |
On |
On |
Off |
On |
|
| » | 260h |
Off |
On |
On |
Off |
Off |
280h |
Off |
On |
Off |
On |
On |
|
2A0h |
Off |
On |
Off |
On |
Off |
|
2C0h |
Off |
On |
Off |
Off |
On |
|
2E0h |
Off |
On |
Off |
Off |
Off |
|
300h |
Off |
Off |
On |
On |
On |
|
320h |
Off |
Off |
On |
On |
Off |
|
340h |
Off |
Off |
On |
Off |
On |
|
360h |
Off |
Off |
On |
Off |
Off |
|
380h |
Off |
Off |
Off |
On |
On |
|
3A0h |
Off |
Off |
Off |
On |
Off |
|
3C0h |
Off |
Off |
Off |
Off |
On |
|
3E0h |
Off |
Off |
Off |
Off |
Off |
|
