Card Type

Digital I/O card

Chip Set

Motorola

Maximum Onboard Memory

1MB

I/O Options

36-pin port

Data Bus

32-bit PCI

Card Size

Full-length, full-height card

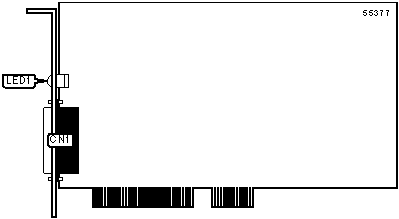

CONNECTIONS

Function

Label

36-pin female port

CN1

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Unidentified

Blinking

Card is being configured

Note: Network software will control LED function after card configuration.
