Card Type

Parallel card

Chip Set

Unidentified

I/O Options

Parallel port

Data Bus

16-bit ISA

Card Size

Half-length, full-height

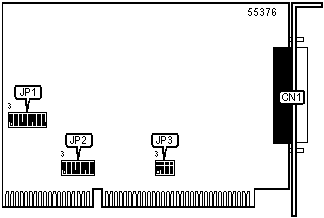

CONNECTIONS

Function

Label

Parallel port

CN1

DMA/DACK CHANNEL SELECTION

Channel

JP3

DMA 1

Pins 1 & 2 are closed

DMA 3

Pins 4 & 5 are closed

DACK/DMA 1

Pins 7 & 8 are closed

DACK/DMA 3

Pins 10 & 11 are closed

PARALLEL PORT ADDRESS SELECTION

Setting

JP1

LPT1 (378h)

Pins 2 & 3, 5 & 6 are closed

LPT2 (278h)

Pins 2 & 3, 4 & 5 are closed

LPT3 (3BCh)

Pins 1 & 2, 5 & 6 are closed

Disabled

Pins 1 & 2, 4 & 5 are closed

PARALLEL PORT INTERRUPT SELECTION

IRQ

JP2

IRQ5

Pins 1 & 2 are closed

IRQ7

Pins 4 & 5 are closed

IRQ9

Pins 7 & 8 are closed

IRQ10

Pins 10 & 11 are closed

IRQ11

Pins 13 & 14 are closed

IRQ12

Pins 16 & 17 are closed

IRQ15

Pins 19 & 20 are closed

PARALLEL PORT MODE SELECTION

Setting

JP1

Uni-directional

Pins 14 & 15, 17 & 18 are closed

Bi-Directional (ECP)

Pins 14 & 15, 16 & 17 are closed

Bi-Directional (EPP)

Pins 13 & 14, 17 & 18 are closed

FDD

Pins 13 & 14, 16 & 17 are closed
