Card Type	Sound card
Chip Set	Unidentified
Maximum Onboard Memory	Unidentified
I/O Options	Speaker out, line out, auxiliary in (2), microphone in, game/MIDI port, audio in – CD-ROM, TAD connector
Data Bus	32-bit PCI
Card Size	Half-length, full-height card

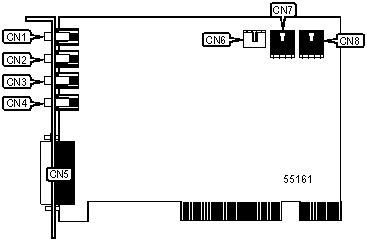

CONNECTIONS
Function	Label	Function	Label
Speaker out	CN1	Game/MIDI port	CN5
Line out	CN2	Audio in – CD-ROM	CN6
Auxiliary in	CN3	Auxiliary connector	CN7
Microphone in	CN4	TAD connector	CN8
