ANTEX ELECTRONICS
STUDIOCARD AV PRO
|
Card Type |
Video capture board, Sound card |
|
Chip Set |
Unidentified |
|
Maximum Onboard Memory |
Unidentified |
|
I/O Options |
Clock line in, clock line out, video line in, video line out, 25-pin I/O connector, 15-pin I/O connector |
|
Data Bus |
32-bit PCI |
|
Card Size |
Full-length, full-height |
|

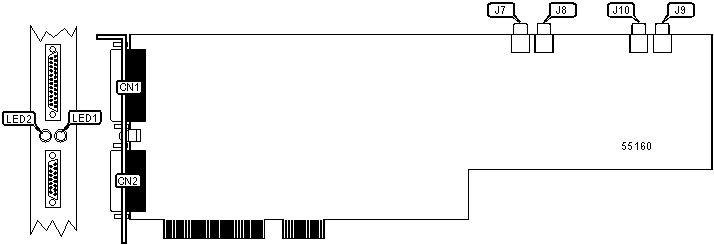

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
25-pin I/O connector |
CN1 |
Clock line out |
J8 |
|
15-pin I/O connector |
CN2 |
Video line out |
J9 |
|
Clock line in |
J7 |
Video line in |
J10 |
|
DIAGNOSTIC LED(S) |
||
|
LED1 (Red) |
LED2 (Green) |
Condition |
|
On |
On |
Signals that the board is set as adapter number 1 |
|
Off |
On |
Signals that the board is set as adapter number 2 |
|
On |
Off |
Signals that the board is set as adapter number 3 |
|
Off |
Off |
Signals that the board is set as adapter number 4 |
