TANDY/RADIO SHACK
CDR-1501 INTERFACE BOARD
|
Card Type |
CD-ROM Interface card |
|
Chip Set |
Unidentified |
|
Maximum Onboard Memory |
Unidentified |
|
I/O Options |
Audio in – CD-ROM, 40-pin CD-ROM interface, Line in |
|
Data Bus |
8-bit ISA |
|
Card Size |
Half-length, full-height |
.
|

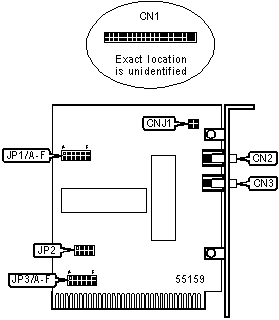

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
CD-ROM interface |
CN1 |
Line out - Right |
CN3 |
|
Line out - Left |
CN2 |
Audio in – CD-ROM |
CNJ1 |
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
| » |
Factory configured - do not alter |
JP2 |
Unidentified |
|
DMA CHANNEL SELECTION |
|||||||
|
Channel |
JP3/A |
JP3/B |
JP3/C |
JP3/D |
JP3/E |
JP3/F |
|
|
DRQ 1 |
Closed |
Open |
Open |
Open |
Open |
Open |
|
|
DACK 1 |
Open |
Closed |
Open |
Open |
Open |
Open |
|
|
DRQ 2 |
Open |
Open |
Closed |
Open |
Open |
Open |
|
|
DACK 2 |
Open |
Open |
Open |
Closed |
Open |
Open |
|
|
DRQ 3 |
Open |
Open |
Open |
Open |
Closed |
Open |
|
|
DACK 3 |
Open |
Open |
Open |
Open |
Open |
Closed |
|
| » |
Software |
Open |
Open |
Open |
Open |
Open |
Open |
|
BASE I/O ADDRESS SELECTION |
|||||||
|
Settings |
JP1/A |
JP1/B |
JP1/C |
JP1/D |
JP1/E |
JP1/F |
|
|
300h |
Open |
Open |
Open |
Open |
Open |
Open |
|
|
310h |
Open |
Open |
Closed |
Open |
Open |
Open |
|
|
320h |
Open |
Open |
Open |
Closed |
Open |
Open |
|
|
330h |
Open |
Open |
Closed |
Closed |
Open |
Open |
|
| » |
340h |
Open |
Open |
Open |
Open |
Closed |
Open |
|
350h |
Open |
Open |
Closed |
Open |
Closed |
Open |
|
|
360h |
Open |
Open |
Open |
Closed |
Closed |
Open |
|
|
370h |
Open |
Open |
Closed |
Closed |
Closed |
Open |
|
|
380h |
Open |
Open |
Open |
Open |
Open |
Closed |
|
|
390h |
Open |
Open |
Closed |
Open |
Open |
Closed |
|
