AAEON TECHNOLOGY, INC.
PCM-3115 PCMCIA
|
Card Type |
PCMCIA Drive Module |
|
Boot ROM |
Available |
|
Chip Set |
Unidentified |
|
I/O Options |
PC/104 connectors (2) |
|
Data Bus |
External |
|

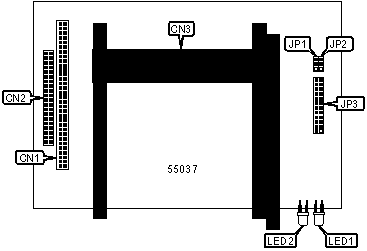

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
64-pin PC/104 connector |
CN1 |
PCMCIA card connector |
CN3 |
|
40-pin PC/104 connector |
CN2 |
||
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
| » |
Boot-ROM disabled |
JP3/Pins 15 & 16 |
Open |
|
Boot-ROM enabled |
JP3/Pins 15 & 16 |
Closed |
|
|
PCMCIA CARD DRIVE CONFIGURATION |
|||
|
Settings |
JP1 |
JP2 |
|
| » |
PCMCIA Card Drive 1 |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
PCMCIA Card Drive 2 |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
|
|
PCMCIA Card Drive 3 |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
|
PCMCIA Card Drive 4 |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
|
DIAGNOSTIC LED(S) |
|||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Unidentified |
On |
Drive activity detected |
|
LED1 |
Unidentified |
Off |
No drive activity detected |
|
LED2 |
Unidentified |
On |
Battery power is running low |
|
LED2 |
Unidentified |
Off |
Battery functioning normally |
