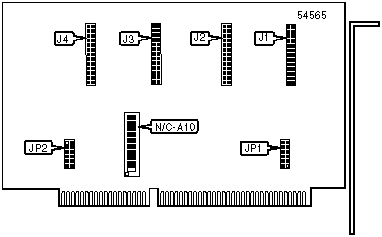

CONNECTIONS

Function

Label

Function

Label

J1

J2

J3

J4

INTERRUPT SELECTION

IRQ

JP1/Pins 1 & 2

JP1/Pins 3 & 4

JP1/Pins 5 & 6

JP1/Pins 7 & 8

JP1/Pins 9 & 10

JP1/Pins 11 & 12

3

Closed

Open

Open

Open

Open

Open

4

Open

Closed

Open

Open

Open

Open

5

Open

Open

Closed

Open

Open

Open

6

Open

Open

Open

Closed

Open

Open

7

Open

Open

Open

Open

Closed

Open

9/2

Open

Open

Open

Open

Open

Closed

INTERRUPT SELECTION

IRQ

JP2/Pins 1 & 2

JP2/Pins 3 & 4

JP2/Pins 5 & 6

JP2/Pins 7 & 8

JP2/Pins 9 & 10

JP2/Pins 11 & 12

10

Closed

Open

Open

Open

Open

Open

11

Open

Closed

Open

Open

Open

Open

12

Open

Open

Closed

Open

Open

Open

14

Open

Open

Open

Closed

Open

Open

15

Open

Open

Open

Open

Closed

Open

BASE I/O ADDRESS SELECTION

Setting

S1/A3

S1/A4

S1/A5

S1/A6

S1/A7

S1/A8

S1/A9

S1/A10

7FFh

Off

Off

Off

Off

Off

Off

Off

Off

7F7h

On

Off

Off

Off

Off

Off

Off

Off

7E7h

On

On

Off

Off

Off

Off

Off

Off

7C7h

On

On

On

Off

Off

Off

Off

Off

787h

On

On

On

On

Off

Off

Off

Off

» 300h

On

On

On

On

On

Off

Off

On

1F7h

On

Off

Off

Off

Off

Off

On

On

1E7h

On

On

Off

Off

Off

Off

On

On

1C7h

On

On

On

Off

Off

Off

On

On

On

On

On

On

On

Off

Off

On

On

100h

On

On

On

On

On

Off

On

On

Note:

A total of 255 base address settings are available. The switches are a binary representation of the decimal memory addresses. S1/A10 is the Most Significant Bit and switch S1/A3 is the Least Significant Bit. The switches have the following decimal values: S1/A10=1024, S1/A9=512, S1/A8=256, S1/A7=128, S1/A6=64, S1/A5=32, S1/A4=16, S1/A3=8. In addition, a base value of 7 must be added to all decimal values to account for fixed bits A2, A1, and A0. Turn off the switches and add the values of the switches to obtain the correct memory address. (Off=1, On=0)
