SIIG, INC.
EIDE MASTER ISA (VER. C)
| Card Type | Hard drive controller card |
| Processor | None |
| Maximum Onboard Memory | Unidentified |
| Hard Drives supported | Four EIDE drives |
| Floppy drives supported | Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
| I/O Options | Floppy drive interface, IDE interface |
| Data Bus | 16-bit ISA |

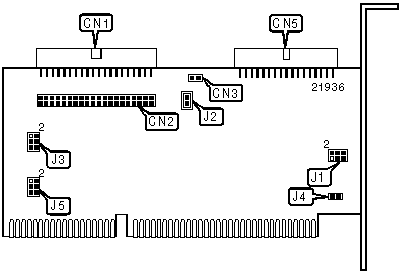

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Primary IDE connector | CN1 | Floppy drive connector | CN5 |
| Secondary IDE connector | CN2 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
Floppy drive interface enabled | J2 | Closed |
| Floppy drive interface disabled | J2 | Open | |
» |
Factory configured - do not alter | J4 | Closed |
BIOS ADDRESS SELECTION |
||
Address |
J1 | |
| D000h | Pins 1 & 3, 2 & 4 closed | |
| » | D400h | Pins 1 & 3, 4 & 6 closed |
| D800h | Pins 3 & 5, 2 & 4 closed | |
DC00h |
Pins 3 & 5, 4 & 6 closed | |
IDE ADDRESS AND IRQ SELECTION |
||||||
IDE 1 address |
IDE 2 address |
IDE 1 IRQ |
IDE 2 IRQ | J3 |
J5 | |
| » | 1F0h | 170h |
14 |
15 | 1 & 3, 2 & 4 | 1 & 3, 2 & 4 |
| 1E8h | 168h |
10 |
12 | 3 & 5, 4 & 6 | 3 & 5, 4 & 6 | |
Note: Pins designated should be in the closed position. |
||||||
