INFORTREND TECHNOLOGY, INC.

IFT-3101U2G
Card Type RAID controller card
Processor AM5x86
Processor Speed Unidentified
Maximum Onboard Memory 128MB DRAM (EDO supported)
Hard Drives supported Up to 45 Ultra2 Wide SCSI devices
Floppy drives supported None
I/O Options Serial interface, Ultra2 Wide SCSI connectors (2)
Data Bus SCSI



CONNECTIONS

Function

Label

Function

Label

160-pin docking connector CN1 Daughter board connector CN3
Daughter board connector CN2


DRAM CONFIGURATION

Size

BANK 0

8MB

(1) 2MB X 36

16MB

(1) 4MB X 36

32MB

(1) 8MB X 36

64MB

(1) 16MB X 36

128MB (1) 32MB X 36





CONNECTIONS

Function

Label

Function

Label

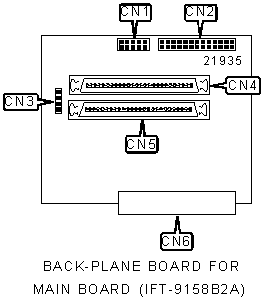

Serial interface CN1 SCSI connector CN4
Fault bus connector CN2 SCSI connector CN5
I2c interface CN3 160-pin docking connector CN6




CONNECTIONS

Function

Label

Function

Label

160-pin docking connector CN1 Daughter board connector CN3
Daughter board connector CN2




CONNECTIONS

Function

Label

Function

Label

160-pin docking connector CN1 Unidentified CN4
SCSI connector CN2 Unidentified CN5
SCSI connector CN3




CONNECTIONS

Function

Label

Function

Label

160-pin docking connector CN1 Daughter board connector CN3
Daughter board connector CN2




CONNECTIONS

Function

Label

Function

Label

160-pin docking connector CN1 Unidentified CN4
SCSI connector CN2 Unidentified CN5
SCSI connector CN3




CONNECTIONS

Function

Label

Function

Label

160-pin docking connector CN1 Daughter board connector CN3
Daughter board connector CN2




CONNECTIONS

Function

Label

Function

Label

160-pin docking connector CN1 Unidentified CN2


MISCELLANEOUS TECHNICAL NOTES

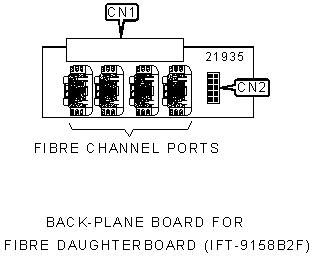

Fibre channel ports can be configured as 2 single loops or 1 dual loop.
