INFORTREND TECHNOLOGY, INC.

IFT-3102U2
Card Type RAID controller card
Processor AM5x86
Processor Speed Unidentified
Maximum Onboard Memory 128MB DRAM
Hard Drives supported Up to 75 Ultra2 Wide SCSI devices
Floppy drives supported None
Form factor 5.25"
Bus type External
RAID Levels Supported 0, 1, 3, 5

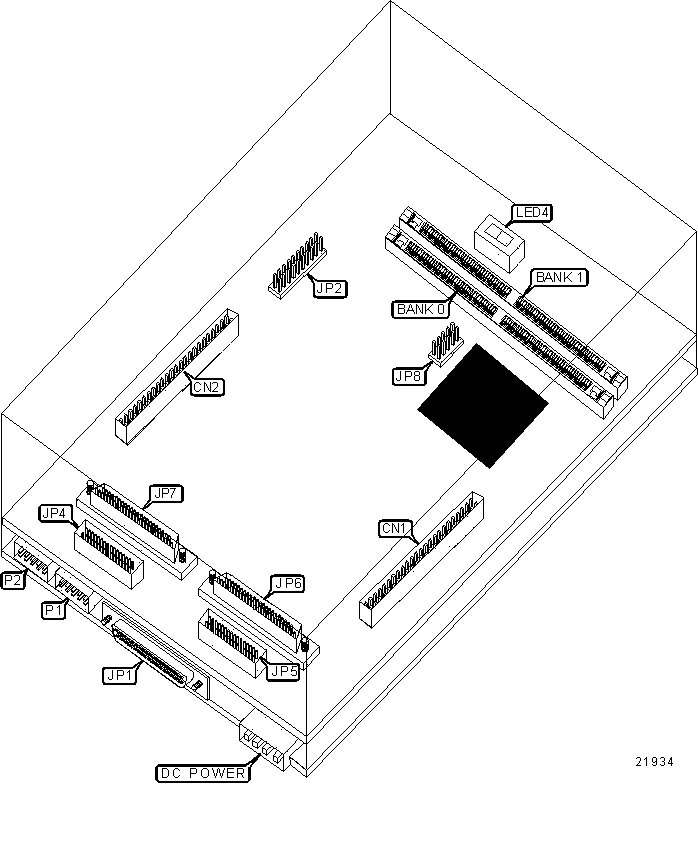

CONNECTIONS

Function

Location

Function

Location

Daughter board connector

CN1

 SCSI channel 1 connector

JP6
Daughter board connector

CN2

 SCSI channel 2 connector

JP7
SCSI channel 0 connector

JP1

 Battery board connector

JP8
Battery board connector

JP2

 7-segment LED

LED4
Fault bus connector

JP4

 Serial port

P1
I2C port

JP5

 Redundant controller port

P2


DRAM CONFIGURATION

Size

BANK 0

BANK 1

8MB

(1) 2MB X 36

None

16MB

(1) 2MB X 36

(1) 2MB X 36

16MB

(1) 4MB X 36

None

32MB

(1) 4MB X 36

(1) 4MB X 36

32MB

(1) 8MB X 36

None

64MB

(1) 8MB X 36

(1) 8MB X 36

64MB

(1) 16MB X 36

None

128MB

(1) 16MB X 36

(1) 16MB X 36

128MB (1) 32MB X 36 None

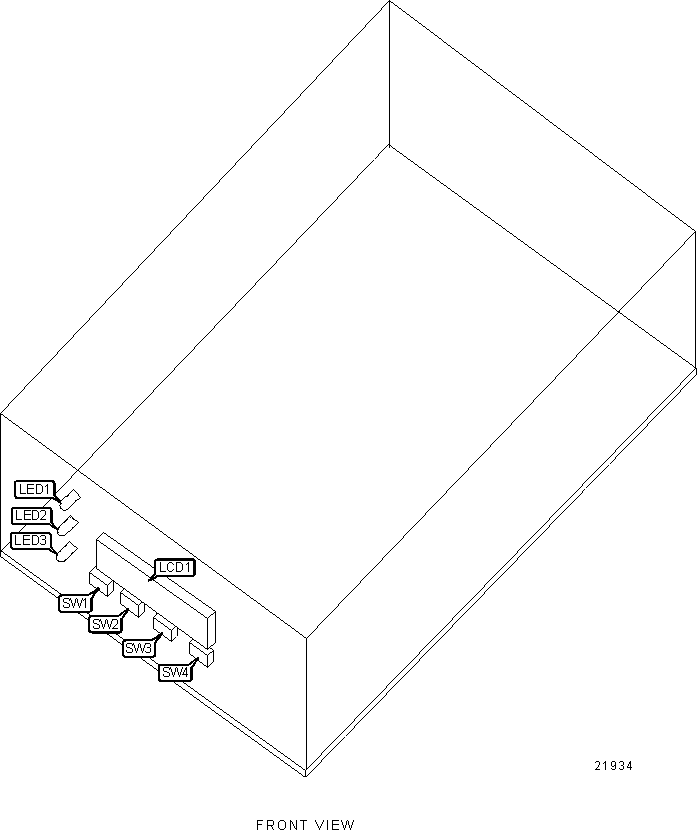

SWITCH FUNCTIONS

Function

Switch

Scroll through available functions

SW1

Scroll through available functions

SW2

Chooses or executes an option

SW3

Returns to preceding menu or cancel selection

SW4


DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Unidentified

On

Power on

LED1

Unidentified

Off

Power off

LED2

Unidentified

On

Unprocessed cached data still in memory

LED2

Unidentified

Blinking

Data is being accessed

LED2

Unidentified

Off

No drive activity

LED3

Unidentified

On

Lights when service is required

LED3

Unidentified

Off

No service required



CONNECTIONS

Function

Location

Function

Location

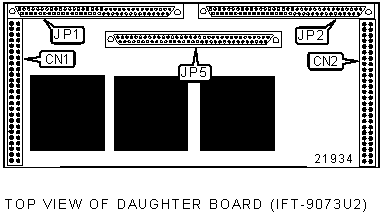

Daughter board connector

CN1

 SCSI channel 4 connector

JP2
Daughter board connector

CN2

 SCSI channel 5 connector

JP5
SCSI channel 3 connector

JP1





CONNECTIONS

Function

Location

Function

Location

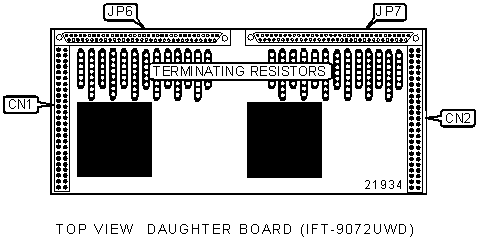

Daughter board connector

CN1

SCSI channel 3 connector

JP6

Daughter board connector

CN2

SCSI channel 4 connector

JP7



CONNECTIONS

Function

Location

Function

Location

Daughter board connector

CN1

 SCSI channel 4 connector

JP2
Daughter board connector

CN2

 SCSI channel 5 connector

JP5
SCSI channel 3 connector

JP1





CONNECTIONS

Function

Location

Function

Location

Battery board connector

JP2

 IFT-9010 battery pack connector

JP10
Battery board connector

JP8
