INFORTREND TECHNOLOGY, INC.
IFT-3101UGAL
| Card Type | RAID controller card |
| Processor | 486 |
| Processor Speed | Unidentified |
| Maximum Onboard Memory | 64MB DRAM (EDO supported) |
| Hard Drives supported | Up to 45 Ultra-SCSI Wide devices |
| Floppy drives supported | None |
| I/O Options | Integrated mating connector |
| Data Bus | SCSI |
| Raid Levels Supported | 0, 1, 3, 5 |

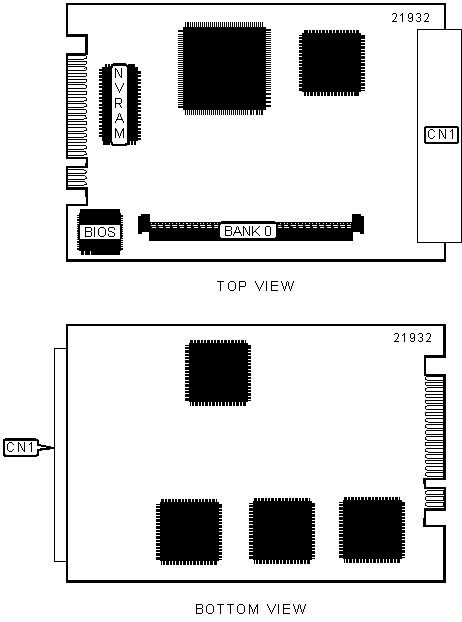

CONNECTIONS |
|
Function |
Label |
| 210-pin integrated mating connector | CN1 |
DRAM CONFIGURATION |
|
Size |
Bank 0 |
4MB |
(1) 1M x 32 |
8MB |
(1) 2M x 32 |
16MB |
(1) 4M x 32 |
32MB |
(1) 8M x 32 |
64MB |
(1) 16M x 32 |
| Note: DRAM & EDO RAM is supported. Minimum required DRAM is 4MB, however, 8MB is recommended. | |
