CMD TECHNOLOGY, INC.
CSV-8000
| Card Type | Hard drive controller card |
| Cache | 512MB |
| Maximum Onboard Memory | Unidentified |
| Hard Drives supported | Up to 42 SCSI-2 Fast devices |
| Floppy drives supported | One 1.44MB drive |
| Data Bus | External |

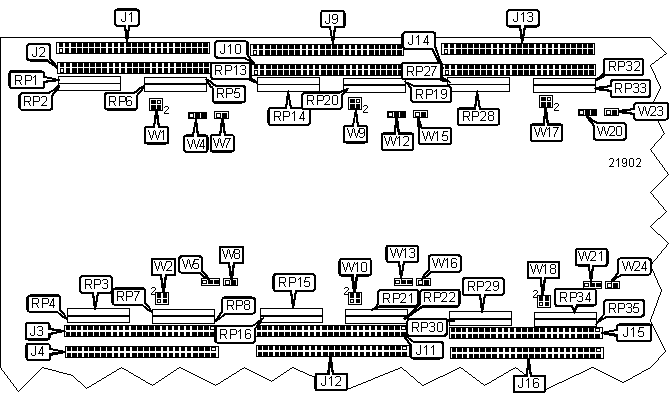

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| 50-pin SCSI connector - Port 0 | J1 | 50-pin SCSI connector - Port 4 | J11 |
| DSSI connector - Not supported | J2 | DSSI connector - Not supported | J12 |
| 50-pin SCSI connector - Port 3 | J3 | 50-pin SCSI connector - Port 2 | J13 |
| DSSI connector - Not supported | J4 | DSSI connector - Not supported | J14 |
| 50-pin SCSI connector - Port 1 | J9 | 50-pin SCSI connector - Port 5 | J15 |
| DSSI connector - Not supported | J10 | DSSI connector - Not supported | J16 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | Factory configured - do not alter | W1 | Open |
| » | Factory configured - do not alter | W2 | Open |
| » | Factory configured - do not alter | W4 | Pins 1 & 2 closed |
| » | Factory configured - do not alter | W5 | Pins 1 & 2 closed |
| » | Factory configured - do not alter | W7 | Closed |
| » | Factory configured - do not alter | W8 | Closed |
| » | Factory configured - do not alter | W9 | Open |
| » | Factory configured - do not alter | W10 | Open |
| » | Factory configured - do not alter | W12 | Pins 1 & 2 closed |
| » | Factory configured - do not alter | W13 | Pins 1 & 2 closed |
| » | Factory configured - do not alter | W15 | Closed |
| » | Factory configured - do not alter | W16 | Closed |
| » | Factory configured - do not alter | W17 | Open |
| » | Factory configured - do not alter | W18 | Open |
| » | Factory configured - do not alter | W20 | Pins 1 & 2 closed |
| » | Factory configured - do not alter | W21 | Pins 1 & 2 closed |
| » | Factory configured - do not alter | W23 | Closed |
| » | Factory configured - do not alter | W24 | Closed |
SCSI TERMINATION SELECTION (PORT 0) |
||||
Setting |
RP1 | RP2 | RP5 | RP6 |
| On-board termination | Resistor installed (110 ohm) | Open | Resistor installed (110 ohm) | Open |
| External termination | Open | Open | Open | Open |
SCSI TERMINATION SELECTION (PORT 1) |
||||
Setting |
RP13 | RP14 | RP19 | RP20 |
| On-board termination | Resistor installed (110 ohm) | Open | Resistor installed (110 ohm) | Open |
| External termination | Open | Open | Open | Open |
SCSI TERMINATION SELECTION (PORT 2) |
||||
Setting |
RP27 | RP28 | RP32 | RP33 |
| On-board termination | Resistor installed (110 ohm) | Open | Resistor installed (110 ohm) | Open |
| External termination | Open | Open | Open | Open |
SCSI TERMINATION SELECTION (PORT 3) |
||||
Setting |
RP3 | RP4 | RP7 | RP8 |
| On-board termination | Open | Resistor installed (110 ohm) | Open | Resistor installed (110 ohm) |
| External termination | Open | Open | Open | Open |
SCSI TERMINATION SELECTION (PORT 4) |
||||
Setting |
RP15 | RP16 | RP21 | RP22 |
| On-board termination | Open | Resistor installed (110 ohm) | Open | Resistor installed (110 ohm) |
| External termination | Open | Open | Open | Open |
SCSI TERMINATION SELECTION (PORT 5) |
||||
Setting |
RP29 | RP30 | RP34 | RP35 |
| On-board termination | Open | Resistor installed (110 ohm) | Open | Resistor installed (110 ohm) |
| External termination | Open | Open | Open | Open |
MISCELLANEOUS TECHNICAL NOTE |
All ports on model CSV-8000 are configured for SCSI. Floppy disk drive used to load firmware, only. |
