INFORTREND TECHNOLOGY, INC.
IFT-2101U2B
| Card Type | Hard drive controller card |
| Processor | AM 5x86 |
| Processor Speed | 133MHz |
| Maximum Onboard Memory | 128MB DRAM |
| Hard Drives Supported | Up to 30 SCSI devices |
| Floppy Drives Supported | None |
| Data Bus | 32-bit PCI |
| Raid Levels Supported | 0,1,3,5 |

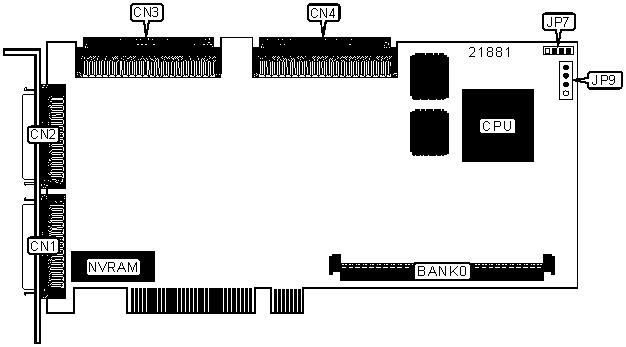

CONNECTIONS |
|||
Function |
Location |
Function |
Location |
| SCSI Ultra2 Wide LVD channel 1 connector - external | CN1 |
SCSI Ultra2 Wide LVD channel 1 connector - internal | CN4 |
| SCSI Ultra2 Wide LVD channel 0 connector - external | CN2 |
4-pin drive activity LED connector | JP7 |
| SCSI Ultra2 Wide LVD channel 0 connector - internal | CN3 |
I2C connector | JP9 |
DRAM CONFIGURATION |
|
Size |
BANK 0 |
8MB |
(1) 2MB x 32 |
16MB |
(1) 4MB x 32 |
32MB |
(1) 8MB x 32 |
64MB |
(1) 16MB x 32 |
128MB |
(1) 32MB x 32 |
| Note: EDO memory is recommended. | |
MISCELLANEOUS TECHNICAL NOTES |
SCSI-1, SCSI-2, Ultra Wide SCSI (1 & 2) drives are compatible. If a single ended device is connected to an LVD bus, all devices and cables connected will operate in single ended mode and are confined to single ended standards. SCSI ID 7 is reserved for the controller. |
