Q LOGIC CORPORATION
QLA 1280
| Card Type | SCSI Host controller card |
| Processor | Unidentified |
| Maximum Onboard Memory | 128K static RAM |
| Drives supported | Up to 30 SCSI-2, SCSI-3, Ultra SCSI or Ultra2 SCSI devices |
| Data Bus | 64-bit PCI |

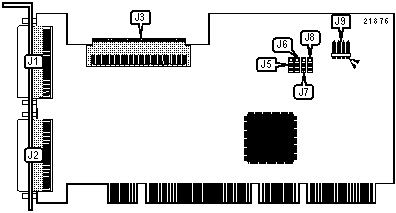

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| 68-pin Ultra2 SCSI external connector | J1 | 68-pin Ultra2 SCSI internal connector | J3 |
| 68-pin Ultra2 SCSI external connector | J2 | LED connector | J9 |
PORT 1 TERMINATION SELECTION |
|||
Setting |
J5 | J6 | |
| » | Automatic termination enabled |
Pins 1 & 2 Closed | Pins 1 & 2 Closed |
| Termination disabled | Open | Open | |
| Termination enabled | Pins 2 & 3 Closed | Pins 2 & 3 Closed | |
| Termination High | Pins 2 & 3 Closed | Open | |
PORT 2 TERMINATION SELECTION |
|||
Setting |
J7 | J8 | |
| » | Automatic termination enabled |
Pins 1 & 2 Closed | Pins 1 & 2 Closed |
| Termination disabled | Open | Open | |
| Termination enabled | Pins 2 & 3 Closed | Pins 2 & 3 Closed | |
| Termination High | Pins 2 & 3 Closed | Open | |
