PROMISE TECHNOLOGY, INC.
ULTRA 66
| Card Type | IDE controller card |
| Drives supported | Up to 4 IDE devices |
| Data Bus | 32-bit PCI |

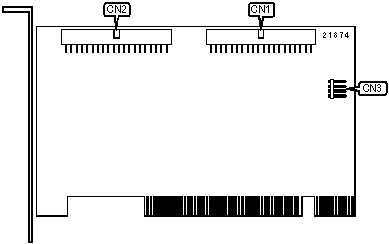

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Primary IDE connector | CN1 | LED connector | CN3 |
| Secondary IDE connector | CN2 | ||
| Note: IDE connectors attach to proprietary 80-wire, 40-pin cables. | |||
MISCELLANEOUS TECHNICAL NOTES |
A 40-wire, 40-pin IDE cable can be used instead of proprietary cable but with less performance. When connecting LED, use top two pins, red cable on top. |
