ADAPTEC, INC.
SCSI CARD 2930U2
| Card Type | SCSI Host controller card |
| Drives supported | Up to 15 Ultra2 SCSI, Wide UltraSCSI, UltraSCSI, Fast Wide SCSI, Fast SCSI, SCSI-2 and SCSI-1 devices |
| Data Bus | 32-bit PCI |

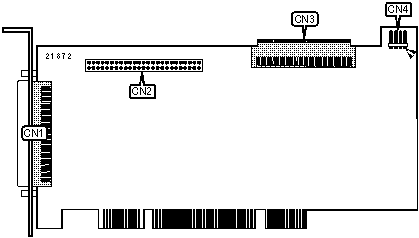

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| 50-pin High-density Ultra SCSI external connector | CN1 | 68-pin High-density Ultra2 SCSI internal connector | CN3 |
| 50-pin Ultra SCSI internal connector | CN2 | LED connector | CN4 |
MISCELLANEOUS TECHNICAL NOTE |
| Termination is factory disabled and cannot be changed on the card. Termination can be changed at the end of the Ultra2 SCSI cable provided |
