GSI, INC.
HOTPORT-ISA (1539-HI-01-4)
| Card Type | Hard drive controller card |
| Drives supported | Up to 4 external EIDE hard drives, CD-ROM drives, DVD drives or LS-120 removable drives |
| Floppy drives supported | LS-120 |
| I/O Options | CD-ROM audio out, DC power |
| Data Bus | 16-bit ISA |

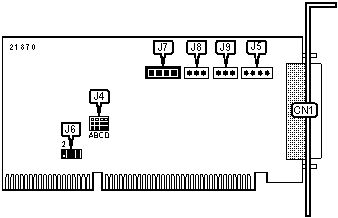

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| 68-pin connector (to external proprietary cable) | CN1 | Remote on/off | J8 |
| DC power in | J5 | Remote on/off | J9 |
| CD-ROM audio out | J7 | ||
| Note: DC power in and CD-ROM audio out support only 1 drive | |||
INTERRUPT SELECTION |
|||
IRQ |
J4/A | J4/B | |
IRQ14 (channel 1) & IRQ15 (channel 2) |
Pins 2 & 3 Closed | Pins 2 & 3 Closed | |
IRQ15 (channel 2) & IRQ11 (channel 3) |
Pins 1 & 2 Closed | Pins 2 & 3 Closed | |
| » | IRQ11 (channel 3) & IRQ10 (channel 4) |
Pins 1 & 2 Closed | Pins 1 & 2 Closed |
IRQ10 (channel 4) only |
Pins 2 & 3 Closed | Pins 1 & 2 Closed | |
Note: Using the setting of channel 1 and channel 2 may cause failure of system boot due to conflict with the C: boot drive |
|||
BIOS ADDRESS SELECTION |
|||
Setting |
J4/C | J4/D | |
| » | C800-CBFF |
Pins 1 & 2 Closed | Pins 1 & 2 Closed |
CC00-CFFF |
Pins 2 & 3 Closed | Pins 1 & 2 Closed | |
D000-D3FF |
Pins 1 & 2 Closed | Pins 2 & 3 Closed | |
E000-E3FF |
Pins 2 & 3 Closed | Pins 2 & 3 Closed | |
ALTERNATE INTERRUPT SELECTION |
||
IRQ |
J6 | |
| » | Standard IRQ settings |
Pins 1 & 2, 3 & 5, 6 & 8 Closed |
IRQ 12 (instead of IRQ 15) |
Pins 2 & 4, 3 & 5, 6 & 8 Closed | |
IRQ 12 (instead of IRQ 11) |
Pins 1 & 2, 3 & 4, 6 & 8 Closed | |
IRQ 12 (instead of IRQ 10) |
Pins 1 & 2, 3 & 5, 4 & 6 Closed | |
