INTERPHASE CORPORATION
4520-004 PMC SCSI-2 ADAPTER
| Card Type | Hard drive controller |
| Hard Drives supported | Up to 30 SCSI-2 Fast/Wide devices |
| Data Bus | PCI Mezzanine |
CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| SCSI-2 connector | CN1 |
PCI mezzanine card connector | J2 |
| PCI mezzanine card connector | J1 | ||

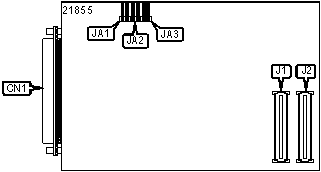

USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| Terminator power to SCSI bus enabled | JA1 | Closed | |
| Terminator power to SCSI bus disabled | JA1 | Open | |
| Active termination for lower SCSI data 7 through 0 disabled | JA2 | Closed | |
| Active termination for lower SCSI data 7 through 0 enabled | JA2 | Open | |
| Active termination for upper SCSI data 15 through 8 disabled | JA3 | Closed | |
| Active termination for upper SCSI data 15 through 8 enabled | JA3 | Open | |
