RANCHO TECHNOLOGY, INC
RT1600E
| Card Type | Hard drive controller card |
| Hard Drives supported | Up to 7 SCSI devices |
| I/O Options | SCSI connector, serial port |
| Data Bus | 16-bit ISA |

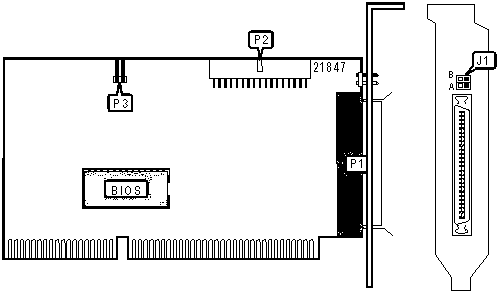

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| Serial port | P1 | Unidentified | P3 |
| SCSI connector | P2 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | Principal RT1600E adapter selected | J1/B | Closed |
| Secondary RT1600E adapter selected | J1/A | Closed | |
