TEKRAM TECHNOLOGY CO., LTD.
DC390F (REV. 5.0)
| Card Type | Hard drive controller card |
| Hard Drives supported | Up to 15 Ultra wide SCSI-3 devices |
| Floppy drives supported | None |
| I/O Options | SCSI connector (3), LED connector |
| Data Bus | 16-bit ISA |
| Card Size | Half-length, half-height card |

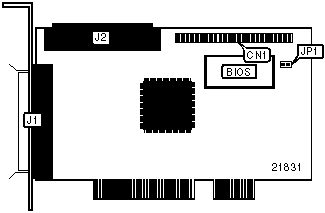

CONNECTIONS |
|||
Function |
Location |
Function |
Location |
| 50-pin SCSI connector - internal | CN1 |
68-pin SCSI connector - internal | J2 |
| 68-pin SCSI connector - external | J1 |
2-pin connector - drive active LED | JP1 |
