TEKRAM TECHNOLOGY CO., LTD.
DC390U2W (REV. 5.0)
| Card Type | Hard drive controller card |
| Hard Drives supported | Up to 15 Ultra-2 SCSIdevices |
| Floppy drives supported | None |
| I/O Options | SCSI connector (4), LED connector |
| Data Bus | 32-bit PCI |
CONNECTIONS |
|||
Function |
Location |
Function |
Location |

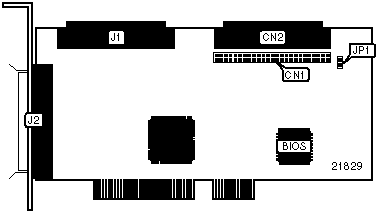

| 68-pin CH.1 SCSI connector - internal | CN1 |
68-pin CH.0 SCSI connector - internal | J2 |
| 50-pin CH.1 SCSI connector - internal | CN2 |
2-pin connector - drive active LED | JP1 |
| 68-pin CH.0 SCSI connector - external | J1 |
||
