ADAPTEC, INC.
AAA-131CA
| Card Type | Hard drive controller card |
| Chip Set | Unidentified |
| Maximum Onboard Memory | 64MB EDO DRAM |
| Hard Drives supported | Up to 15 Wide SCSI-2 or Ultra-wide SCSI devices |
| I/O Options | SCSI connector (3), LED connector |
| Data Bus | 32-bit PCI |
| Card Size | Half-length/full height card |
CONNECTIONS |
|||
Function |
Label |
Function |
Label |

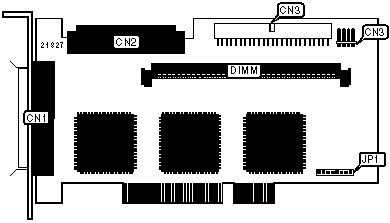

| 68-pin SCSI connector Ch. 0 - external | CN1 |
50-pin SCSI connector Ch. 1 - internal | CN3 |
| 68-pin SCSI connector Ch. 0 - internal | CN2 |
2-pin connector - drive active LED | CN4 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | Factory configured - do not alter | JP1 |
Unidentified |
MEMORY CONFIGURATION |
| Note: 16MB, 32MB, or 64MB DIMM module may be installed in memory socket |
