OCEAN INFORMATION SYSTEMS, INC.
110HDC
|
Card Type |
Hard drive controller |
|
Chip Set |
Unidentified |
|
Hard Drives supported |
Two IDE(AT) drives |
|
Floppy drives supported |
Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
|
I/O Options |
Floppy drive interface, IDE interface |
|
Data Bus |
16-bit ISA |
|
CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
4-pin connector - drive active LED |
P1 |
34-pin cable connector - floppy drive |
P3 |
|
40-pin IDE(AT) connector |
P2 |
||
|

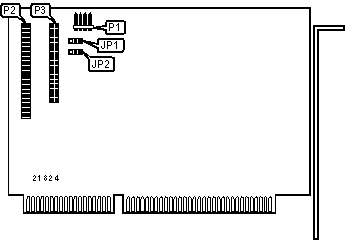

USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
| » |
IDE(AT) interface enabled |
JP1 |
Pins 1 & 2 closed |
|
IDE(AT) interface disabled |
JP1 |
Pins 2 & 3 closed |
|
| » |
IDE interface interrupt set to direct IRQ |
JP2 |
Pins 1 & 2 closed |
|
IDE interface interrupt set to buffered IRQ |
JP2 |
Pins 2 & 3 closed |
|
