OCEAN INFORMATION SYSTEMS, INC.
COMPACT I/O A
| Card Type | Hard drive controller |
| Chip Set | Unidentified |
| Hard Drives supported | Two IDE(AT) drives |
| Floppy drives supported | Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
| I/O Options | Floppy drive interface, IDE interface, parallel port, serial ports (2), game port |
| Data Bus | 16-bit ISA |

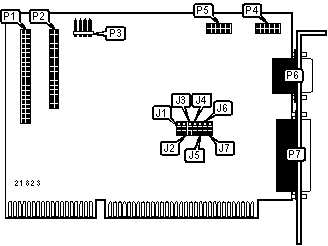

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| 40-pin IDE(AT) connector | P1 |
10-pin serial port 2 - internal | P5 |
| 34-pin cable connector - floppy drive | P2 |
Game port | P6 |
| 4-pin connector - drive active LED | P3 |
25-pin parallel port | P7 |
| 10-pin serial port 1 - internal | P4 |
||
USER CONFIGURABLE SETTINGS |
||
Function |
Label |
Position |
| Floppy drive interface enabled | J6 |
Pins 1 & 2 closed |
| Floppy drive interface disabled | J6 |
Pins 2 & 3 closed |
| Game port enabled | J7 |
Pins 1 & 2 closed |
| Game port disabled | J7 |
Pins 2 & 3 closed |
SERIAL PORT 1 ADDRESS SELECTION |
|
Setting |
J4 |
COM1 (3F8h) |
Pins 1 & 2 closed |
Disabled |
Pins 2 & 3 closed |
SERIAL PORT 2 ADDRESS SELECTION |
|
Setting |
J5 |
COM2 (2F8h) |
Pins 1 & 2 closed |
Disabled |
Pins 2 & 3 closed |
PARALLEL PORT ADDRESS SELECTION |
|||
Setting |
J1 |
J2 |
J3 |
LPT1 (3BCh) |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
LPT2 (378h) |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
LPT3 (278h) |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
Disabled |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
Open |
