INITIO CORPORATION
INI-9090U MAC
|
Card Type |
Hard drive controller |
|
Chip Set |
Unidentified |
|
I/O Options |
SCSI connectors (2), LED connector |
|
Hard Drives supported |
Up to 7 Wide SCSI-2 or Ultra-wide SCSI devices |
|
Floppy drives supported |
None |
|
Data Bus |
32-bit PCI |
|

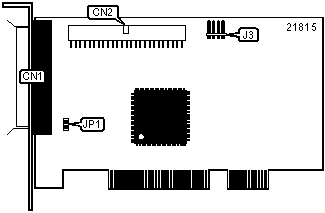

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
50-pin SCSI connector - external |
CN1 |
4-pin connector - drive active LED |
J3 |
|
50-pin SCSI connector - internal |
CN2 |
||
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
| » |
Termination enabled |
JP1 |
Open |
|
Termination disabled |
JP1 |
Closed |
|
