INTRASERVER TECHNOLOGY, INC.
ITI-4280UE
|
Card Type |
Hard drive controller |
|
Chip Set |
Unidentified |
|
Network Transfer Rate |
10/100Mbps |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair |
|
I/O Options |
SCSI-2 connector (5), RJ-45 Ethernet interface, LED connector (3) |
|
Hard Drives supported |
Up to 30 Wide SCSI-2 or Ultra-wide SCSI devices |
|
Floppy drives supported |
None |
|
Data Bus |
32-bit PCI |
|

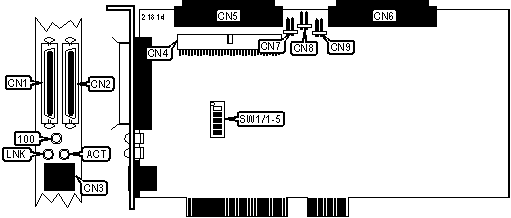

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
68-pin SCSI connector Ch. 0 - external |
CN1 |
68-pin SCSI connector Ch. 0 - internal |
CN6 |
|
68-pin SCSI connector Ch. 1 - external |
CN2 |
2-pin connector - Ch. 0 LED |
CN7 |
|
RJ-45 connector |
CN3 |
2-pin connector - drive active LED |
CN8 |
|
50-pin SCSI connector Ch. 0 - internal |
CN4 |
2-pin connector - Ch. 1 LED |
CN9 |
|
68-pin SCSI connector Ch. 0 - internal |
CN5 |
||
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
| » |
Factory configured - do not alter |
SW1/4 |
On |
| » |
Factory configured - do not alter |
SW1/5 |
On |
|
CHANNEL 0 TERMINATION |
||
|
Devices Connected |
SW1/1 |
SW1/2 |
|
External 68-pin SCSI connector |
On |
On |
|
Internal 68-pin SCSI connector |
On |
On |
|
Internal 50-pin SCSI connector |
On |
On |
|
Internal 68-pin & external 68-pin SCSI connectors |
Off |
Off |
|
Internal 68-pin & internal 50-pin SCSI connectors |
Off |
On |
|
External 68-pin & internal 50-pin SCSI connectors |
Off |
On |
|
Note: SW1/1 enables low jumper termination. SW1/2 enables high jumper termination. |
||
|
CHANNEL 1 TERMINATION |
|
|
Devices Connected |
SW1/3 |
|
External 68-pin SCSI connector |
On |
|
Internal 68-pin SCSI connector |
On |
|
Internal 68-pin & external 68-pin SCSI connectors |
Off |
|
Note: SW1/3 enables low jumper termination. |
|
|
DIAGNOSTIC LED(S) |
|||
|
LED |
Color |
Status |
Condition |
|
100 |
Green |
On |
100Mbps activity |
|
100 |
Green |
Off |
10Mbps activity |
|
ACT |
Amber |
On |
Data is being transmitted/received |
|
ACT |
Amber |
Off |
Data is not being transmitted/received |
|
LNK |
Green |
On |
Network connection is good |
|
LNK |
Green |
Off |
Network connection is broken |
