Card Type

Hard drive controller

Chip Set

Unidentified

I/O Options

SCSI-2 connector (4), LED connectors (2)

Hard Drives supported

Up to 30 Wide SCSI-2 or Ultra-wide SCSI devices

Floppy drives supported

None

Data Bus

32-bit PCI

Card Size

Half-length/full height card

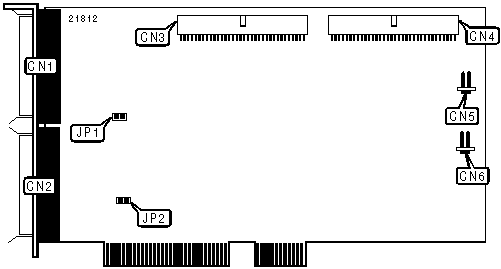

CONNECTIONS

Function

Label

Function

Label

68-pin SCSI connector Ch. 1 - external

CN1

68-pin SCSI connector Ch. 1 - internal

CN4

68-pin SCSI connector Ch. 0 - external

CN2

2-pin connector - drive active LED

CN5

68-pin SCSI connector Ch. 0 - internal

CN3

2-pin connector - drive active LED

CN6

USER CONFIGURABLE SETTINGS

Function

Label

Position

Termination enabled - Ch. 1

JP1

Open

Termination disabled - Ch. 1

JP1

Closed

Termination enabled - Ch. 0

JP2

Open

Termination disabled - Ch. 0

JP2

Closed
