INTRASERVER TECHNOLOGY, INC.
ITI-3280U
|
Card Type |
Hard drive controller |
|
Chip Set |
Unidentified |
|
I/O Options |
SCSI-2 connectors (6), LED connector |
|
Hard Drives supported |
Up to 30 Wide SCSI-2 or Ultra-wide SCSI devices |
|
Floppy drives supported |
None |
|
Data Bus |
32-bit PCI |
|
Card Size |
Half-length/full height card |
|

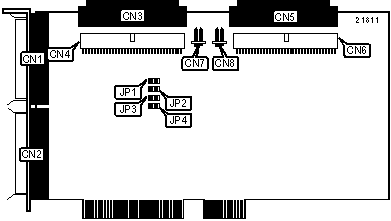

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
68-pin SCSI connector Ch. 1 - external |
CN1 |
68-pin SCSI connector Ch. 1 - internal |
CN5 |
|
68-pin SCSI connector Ch. 0 - external |
CN2 |
50-pin SCSI connector Ch. 1 - internal |
CN6 |
|
68-pin SCSI connector Ch. 0 - internal |
CN3 |
2-pin connector - drive active LED |
CN7 |
|
50-pin SCSI connector Ch. 0 - internal |
CN4 |
2-pin connector - drive active LED |
CN8 |
|
CHANNEL 0 TERMINATION |
||
|
Devices Connected |
JP3 |
JP4 |
|
External 68-pin SCSI connector |
Closed |
Closed |
|
Internal 68-pin SCSI connector |
Closed |
Closed |
|
Internal 50-pin SCSI connector |
Closed |
Closed |
|
Internal 68-pin & external 68-pin SCSI connectors |
Open |
Open |
|
Internal 68-pin & internal 50-pin SCSI connectors |
Closed |
Open |
|
External 68-pin & internal 50-pin SCSI connectors |
Closed |
Open |
|
Note: JP3 enables high jumper termination. JP4 enables low jumper termination |
||
|
CHANNEL 1 TERMINATION |
||
|
Devices Connected |
JP1 |
JP2 |
|
External 68-pin SCSI connector |
Closed |
Closed |
|
Internal 68-pin SCSI connector |
Closed |
Closed |
|
Internal 50-pin SCSI connector |
Closed |
Closed |
|
Internal 68-pin & external 68-pin SCSI connectors |
Open |
Open |
|
Internal 68-pin & internal 50-pin SCSI connectors |
Closed |
Open |
|
External 68-pin & internal 50-pin SCSI connectors |
Closed |
Open |
|
Note: JP1 enables high jumper termination. JP2 enables low jumper termination |
||
