INTRASERVER TECHNOLOGY, INC.
ITI-3140UD
|
Card Type |
Hard drive controller |
|
Chip Set |
Unidentified |
|
I/O Options |
SCSI-2 connector, LED connector |
|
Hard Drives supported |
Up to 7 Wide SCSI-2 or Ultra-wide SCSI devices |
|
Floppy drives supported |
None |
|
Data Bus |
32-bit PCI |
|
Card Size |
Half-length/full height card |
|

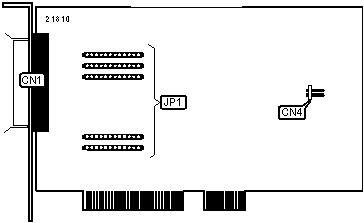

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
68-pin SCSI connector - external |
CN1 |
2-pin connector - drive active LED |
CN4 |
|
TERMINATION SETTING |
|
|
Settings |
JP1 |
|
Enable termination |
Closed |
|
Disable termination |
Open |
