INTERPHASE CORPORATION
4520-001 PMC SCSI-2 DIFFERENTIAL ADAPTER
| Card Type | Hard drive controller |
| Hard Drives supported | Up to 30 SCSI-2 Fast/Wide devices |
| Data Bus | PCI Mezzanine |
CONNECTIONS |
|||
Function |
Label |
Function |
Label |

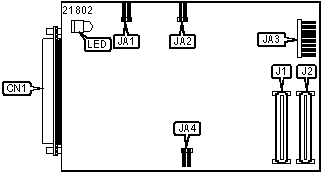

| SCSI-2 connector | CN1 | PCI mezzanine card connector | J2 |
| PCI mezzanine card connector | J1 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| Terminator power to SCSI bus enabled | JA1 | Closed |
|
| Terminator power to SCSI bus disabled | JA1 | Open |
|
| Bus terminator enabled | JA2 | Open |
|
| Bus terminator disabled | JA2 | Closed |
|
| » | Factory configured - do not alter | JA3 | Unidentified |
| » | Little Endian mode enabled | JA4 | Open |
| Big Endian mode enabled | JA4 | Closed |
|
DIAGNOSTIC LED(S) |
Status of diagnostic LED not identified. |
