IWILL CORPORATION
SIDE-2930U
| Card Type | Hard drive controller |
| Hard Drives supported | Up to 7 SCSI-2 devices |
| Data Bus | Intel 32-bit PCI |
CONNECTIONS |
|||
Function |
Label |
Function |
Label |

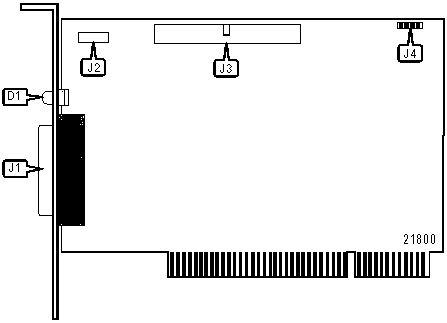

| 50-pin SCSI connector - external | J1 | LED connector | J4 |
| 50-pin SCSI connector - internal | J3 | ||
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
D1 |
Unidentified |
On |
External SCSI device connected |
D1 |
Unidentified |
Off |
External SCSI device not connected |
| MISCELLANEOUS TECHNICAL NOTES |
| Note: J2 controls SCSI terminators, exact settings are unidentified. |
