INTERPHASE CORPORATION
4520-001 PMC SCSI-2 SINGLE-ENDED ADAPTER
| Card Type | Hard drive controller |
| Hard Drives supported | Up to 30 SCSI-2 Fast/Wide devices |
| Data Bus | PCI Mezzanine |

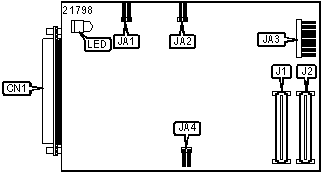

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| SCSI-2 connector | CN1 |
PCI mezzanine card connector | J2 |
| PCI mezzanine card connector | J1 |
||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| Terminator power to SCSI bus enabled | JA1 |
Closed |
|
| Terminator power to SCSI bus disabled | JA1 |
Open |
|
| Bus terminator enabled | JA2 |
Closed |
|
| Bus terminator disabled | JA2 |
Open |
|
| » | Factor configured - do not alter | JA3 |
Unidentified |
| » | Little Endian mode enabled | JA4 |
Open |
| Big Endian mode enabled | JA4 |
Closed |
|
DIAGNOSTIC LED(S) |
| Status of diagnostic LED not identified. |
