Q LOGIC CORPORATION
QLA 12160
| Card Type | SCSI Host Adapter Board |
| Processor | RISC |
| Maximum Onboard Memory | 128K |
| Drives supported | 15 fast, wide SCSI devices, 30 Ultra 2 or Ultra 3 LVD SCSI, 6 Ultra SCSI devices |
| Data Bus | 64-bit PCI |

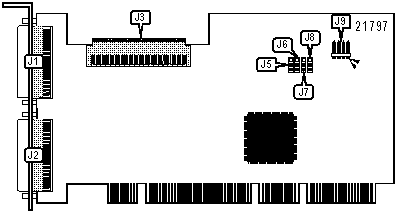

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| 68-pin Ultra2 SCSI external connector | J1 | 68-pin Ultra2 SCSI internal connector | J3 |
| 68-pin Ultra2 SCSI external connector | J2 | LED connector | J9 |
PORT 1 TERMINATION SELECTION |
|||
| Setting | J5 | J6 | |
| » | Automatic termination enabled |
Pins 1 & 2 closed | Pins 1 & 2 closed |
| Termination disabled | Open | Open | |
| Termination enabled | Pins 2 & 3 closed | Pins 2 & 3 closed | |
| Termination High | Pins 2 & 3 closed | Open | |
PORT 2 TERMINATION SELECTION |
|||
Setting |
J7 | J8 | |
| » | Automatic termination enabled |
Pins 1 & 2 closed | Pins 1 & 2 closed |
| Termination disabled | Open | Open | |
| Termination enabled | Pins 2 & 3 closed | Pins 2 & 3 closed | |
| Termination High | Pins 2 & 3 closed | Open | |
