INTERPHASE CORPORATION
5520-002(REV.A)
| Card Type | SCSI controller card |
| Hard Drives supported | Up to 15 SCSI-2 Fast/Wide devices |
| Data Bus | 32-bit PCI |

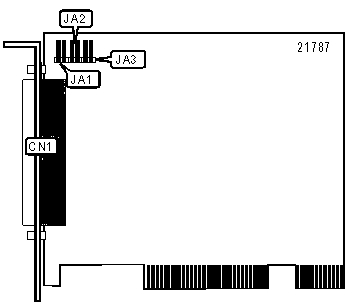

CONNECTIONS |
|
Function |
Label |
| SCSI connector | CN1 |
USER CONFIGURABLE SETTINGS |
||
Function |
Label |
Position |
| Adapter supplies terminator power to SCSI bus | JA1 |
Closed |
| Adapter does not supply terminator power to SCSI bus | JA1 |
Open |
| Active termination for SCSI control and lower data 0 through 7 enabled | JA2 |
Closed |
| Active termination for SCSI control and lower data 0 through 7 disabled | JA2 |
Open |
| Active termination for upper SCSI data 8 through 15 enabled | JA3 |
Closed |
| Active termination for upper SCSI data 8 through 15 disabled | JA3 |
Open |
| External LED enabled | JA4 |
Closed |
| External LED disabled | JA4 |
Open |
