CMD TECHNOLOGY, INC.
CDI-4220
|
Card Type |
SCSI RAID controller |
|
Chip Set |
Unidentified |
|
Cache |
128MB DRAM |
|
I/O Options |
SCSI connector (2), 50-pin connectors (2), SC/SD connectors (2), serial port |
|
Hard Drives supported |
Up to 7 SCSI-2 Fast devices |
|
Interface |
DSSI, SCSI-2 Fast |
|
Data Bus |
External |
|
Dimensions |
144 x 203 |
|

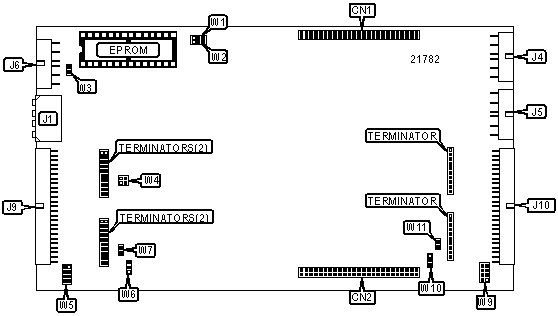

CONNECTIONS |
|||
|
Function |
Location |
Function |
Location |
|
50-pin connector 1 |
CN1 |
Front panel button connector |
J5 |
|
50-pin connector 2 |
CN2 |
Serial port |
J6 |
|
DC power |
J1 |
50-pin DSSI connector |
J9 |
|
Front panel LCD connector |
J4 |
50-pin SCSI connector |
J10 |
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
| » |
Factory configured - do not alter |
W1 |
Unidentified |
| » |
Factory configured - do not alter |
W2 |
Unidentified |
| » |
Manual reset disabled |
W3 |
Open |
|
Manual reset enabled |
W3 |
Closed |
|
| » |
On-board DSSI termination disabled |
W4 |
Closed |
|
On-board DSSI termination enabled |
W4 |
Open |
|
| » |
Factory configured - do not alter |
W5 |
Pins 7 & 8 closed |
| » |
Factory configured - do not alter |
W9 |
Pins 7 & 8 open |
| » |
Factory configured - do not alter |
W10 |
Pins 1 & 2 closed |
|
DRIVE SELECTION |
||||
|
Setting |
W9/Pins 1 & 2 |
W9/Pins 3 & 4 |
W9/Pins 5 & 6 |
|
|
0 |
Open |
Open |
Open |
|
|
1 |
Closed |
Open |
Open |
|
|
2 |
Open |
Closed |
Open |
|
|
3 |
Closed |
Closed |
Open |
|
|
4 |
Open |
Open |
Closed |
|
|
5 |
Closed |
Open |
Closed |
|
|
6 |
Open |
Closed |
Closed |
|
| » |
7 |
Closed |
Closed |
Closed |
|
DSSI TERMINATION POWER SELECTION |
||
|
Setting |
W7 |
|
| » |
TERMPWR supplied by DSSI interface to drive |
Closed |
|
TERMPWR supplied by drive |
Open |
|
|
SCSI TERMINATION POWER SELECTION |
||
|
Setting |
W11 |
|
| » |
TERMPWR supplied by SCSI interface to drive |
Closed |
|
TERMPWR supplied by drive |
Open |
|
|
DSSI NODE ID |
||||
|
Setting |
W5/Pins 1 & 2 |
W5/Pins 3 & 4 |
W5/Pins 5 & 6 |
|
|
0 |
Open |
Open |
Open |
|
|
1 |
Closed |
Open |
Open |
|
|
2 |
Open |
Closed |
Open |
|
|
3 |
Closed |
Closed |
Open |
|
|
4 |
Open |
Open |
Closed |
|
|
5 |
Closed |
Open |
Closed |
|
|
6 |
Open |
Closed |
Closed |
|
| » |
7 |
Closed |
Closed |
Closed |
