Card Type

Hard drive controller

Chip Set

Unidentified

Maximum Onboard Memory

4MB DRAM

I/O Options

game connector, serial connector

Hard Drives supported

Up to 45 Wide SCSI or Ultra SCSI devices

Floppy drives supported

None

Data Bus

32-bit PCI

Card Size

Full-length/full height card

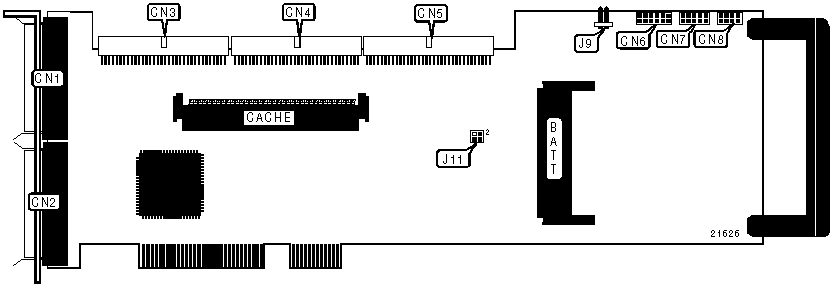

CONNECTIONS

Function

Label

Function

Label

Battery back-up cache connector

BATT

68-pin SCSI connector Ch. 3 - internal

CN5

68-pin SCSI connector Ch. 2 - external

CN1

16-pin game connector

CN6

68-pin SCSI connector Ch. 1 - external

CN2

12-pin DASD status connector

CN7

68-pin SCSI connector Ch. 1 - internal

CN3

10-pin serial connector

CN8

68-pin SCSI connector Ch. 2 - internal

CN4

2-pin connector - drive active LED

J9

DOWNLOAD VIA BOOTBLOCK

Function

J11

» Download via bootblock disabled

Open

Download via bootblock enabled

Pins 1 & 3, 2 & 4 closed

Note: Jumpers should only be installed if download by code block fails

CACHE MEMORY CONFIGURATION

Note: The configuration of the cache memory is unidentified
